The study of fluid dynamics is crucial in understanding the behavior of fluids under various conditions. One of the fundamental aspects of fluid dynamics is the distinction between laminar and turbulent flows. These two types of flows have significantly different characteristics, and their understanding is essential in designing and optimizing systems that involve fluid flow, such as pipelines, airfoils, and marine vessels. In this article, we will delve into the world of fluid dynamics, exploring the concepts of laminar and turbulent flows, their differences, and the factors that influence their occurrence.
Key Points
- Laminar flow is characterized by smooth, continuous layers of fluid, with minimal mixing between layers.
- Turbulent flow involves chaotic, irregular motion, with significant mixing and energy dissipation.
- The Reynolds number is a critical parameter in determining the nature of fluid flow, with higher values indicating turbulent flow.
- Viscosity, velocity, and pipe diameter are factors that influence the Reynolds number and, consequently, the type of flow.
- Understanding the differences between laminar and turbulent flows is crucial in designing efficient systems and minimizing energy losses.
Introduction to Laminar Flow

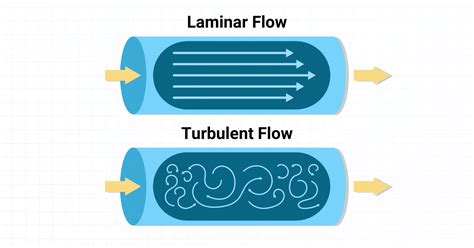

Laminar flow, also known as streamline flow, is a type of fluid flow in which the fluid moves in parallel layers or streams, with minimal mixing between them. This type of flow is characterized by a smooth, continuous, and predictable velocity profile. Laminar flow occurs at low Reynolds numbers, typically less than 2000, and is often observed in systems with low velocities, high viscosities, or small pipe diameters. The flow is stable, and the fluid particles follow a smooth, continuous path, with minimal energy dissipation.
Characteristics of Laminar Flow
Some of the key characteristics of laminar flow include:
- Smooth, continuous velocity profile
- Minimal mixing between fluid layers
- Low energy dissipation
- Stable and predictable flow behavior
- Occurs at low Reynolds numbers (< 2000)
Introduction to Turbulent Flow
Turbulent flow, on the other hand, is a type of fluid flow characterized by chaotic, irregular motion, with significant mixing and energy dissipation. This type of flow occurs at high Reynolds numbers, typically greater than 4000, and is often observed in systems with high velocities, low viscosities, or large pipe diameters. The flow is unstable, and the fluid particles follow a complex, irregular path, with significant energy dissipation.
Characteristics of Turbulent Flow
Some of the key characteristics of turbulent flow include:
- Chaotic, irregular velocity profile
- Significant mixing between fluid layers
- High energy dissipation
- Unstable and unpredictable flow behavior
- Occurs at high Reynolds numbers (> 4000)

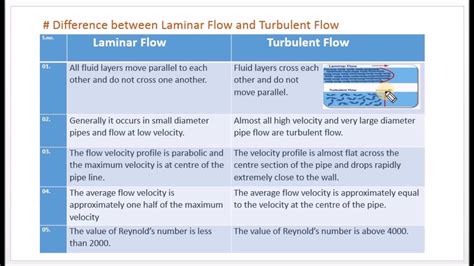

| Reynolds Number Range | Type of Flow |
|---|---|
| Less than 2000 | Laminar |
| 2000-4000 | Transitional |
| Greater than 4000 | Turbulent |
Factors Influencing Laminar and Turbulent Flows
Several factors can influence the occurrence of laminar and turbulent flows, including:
- Viscosity: Higher viscosities tend to promote laminar flow, while lower viscosities tend to promote turbulent flow.
- Velocity: Higher velocities tend to promote turbulent flow, while lower velocities tend to promote laminar flow.
- Pipe diameter: Larger pipe diameters tend to promote turbulent flow, while smaller pipe diameters tend to promote laminar flow.

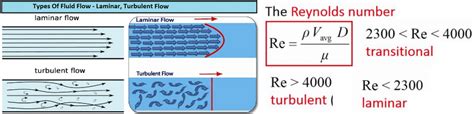

Reynolds Number Calculation
The Reynolds number can be calculated using the formula: Re = ρUL/μ. For example, consider a fluid with a density of 1000 kg/m³, a velocity of 10 m/s, and a viscosity of 0.01 Pa·s, flowing through a pipe with a diameter of 0.1 m. The Reynolds number would be: Re = (1000 kg/m³) × (10 m/s) × (0.1 m) / (0.01 Pa·s) = 10,000.
What is the difference between laminar and turbulent flows?
+Laminar flow is characterized by smooth, continuous layers of fluid, with minimal mixing between layers, while turbulent flow involves chaotic, irregular motion, with significant mixing and energy dissipation.
What is the Reynolds number, and how is it used?
+The Reynolds number is a dimensionless quantity that is used to predict the nature of fluid flow. It is calculated using the formula: Re = ρUL/μ, and is used to determine whether the flow is laminar or turbulent.
What factors can influence the occurrence of laminar and turbulent flows?
+Several factors can influence the occurrence of laminar and turbulent flows, including viscosity, velocity, and pipe diameter.
In conclusion, the distinction between laminar and turbulent flows is crucial in understanding the behavior of fluids under various conditions. The Reynolds number is a critical parameter in determining the nature of fluid flow, and several factors, including viscosity, velocity, and pipe diameter, can influence its occurrence. By understanding the characteristics of laminar and turbulent flows, engineers and researchers can design and optimize systems that involve fluid flow, minimizing energy losses and maximizing efficiency.
