Elastic Modulus Of Steel

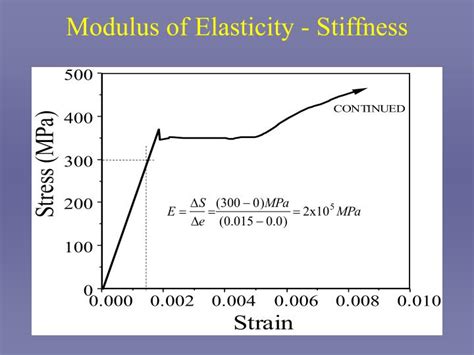

The elastic modulus of steel, also known as the modulus of elasticity or Young's modulus, is a fundamental property that describes the material's ability to resist deformation under stress. It is a measure of the stiffness of the material and is defined as the ratio of stress to strain within the proportional limit of the material. The elastic modulus of steel is a critical parameter in the design and analysis of steel structures, as it determines the material's ability to withstand external loads and deformations.

In general, the elastic modulus of steel is approximately 200 GPa (29,000,000 psi), although this value can vary slightly depending on the specific type of steel and its composition. For example, the elastic modulus of carbon steel is typically around 200-210 GPa (29,000,000-30,000,000 psi), while the elastic modulus of stainless steel can range from 190-210 GPa (27,500,000-30,500,000 psi). The elastic modulus of steel is also influenced by temperature, with values decreasing slightly as the temperature increases.

Elastic Modulus of Different Types of Steel

The elastic modulus of steel can vary depending on the specific type of steel and its composition. For example, the elastic modulus of high-strength steel can be higher than that of low-strength steel, due to the presence of alloying elements such as chromium, nickel, and molybdenum. The elastic modulus of steel can also be affected by the material’s microstructure, with factors such as grain size and texture influencing the material’s mechanical properties.

Factors Affecting the Elastic Modulus of Steel

Several factors can affect the elastic modulus of steel, including temperature, composition, and microstructure. Temperature is a significant factor, as the elastic modulus of steel decreases as the temperature increases. This is because the material’s atoms vibrate more rapidly at higher temperatures, reducing the material’s stiffness. The composition of the steel can also affect the elastic modulus, with the presence of certain alloying elements influencing the material’s mechanical properties. The microstructure of the steel, including factors such as grain size and texture, can also impact the elastic modulus.

Importance of Elastic Modulus in Steel Design

The elastic modulus of steel is a critical parameter in the design and analysis of steel structures. It is used to predict the material’s behavior under different loading conditions, including tension, compression, and bending. The elastic modulus is also used to determine the material’s stiffness, which is essential for ensuring that the structure can withstand external loads and deformations. By understanding the elastic modulus of steel, engineers can design and analyze steel structures that are safe, efficient, and reliable.

Applications of Elastic Modulus in Steel Design

The elastic modulus of steel has a wide range of applications in steel design, including the design of beams, columns, and other structural elements. It is also used in the analysis of steel structures, including the calculation of stresses, strains, and deformations. The elastic modulus is also used in the design of steel connections, including bolts, welds, and rivets. By considering the elastic modulus of steel, engineers can ensure that the structure is designed to withstand the expected loads and deformations.

In conclusion, the elastic modulus of steel is a fundamental property that describes the material's ability to resist deformation under stress. It is a critical parameter in the design and analysis of steel structures, and is influenced by factors such as temperature, composition, and microstructure. By understanding the elastic modulus of steel, engineers can design and analyze steel structures that are safe, efficient, and reliable.
